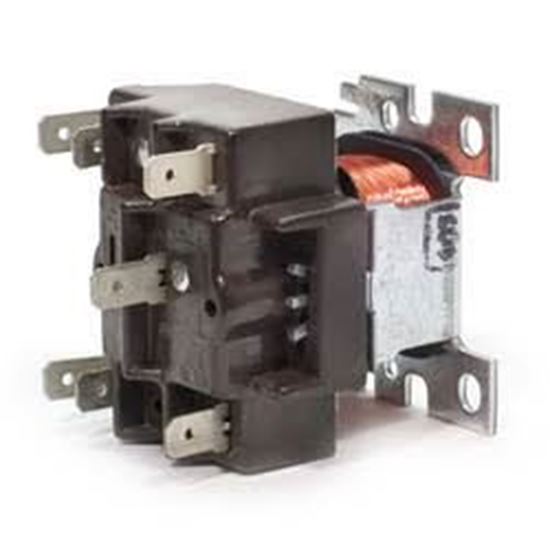

General Purpose Switching Relay, 208/240Vac Coil Rating, DPDT, Full Load Contact Ratings: 3 Amp @ 480Vac, 6 Amp @ 208/240/277Vac, 12 Amp @ 120Vac, Locker Rotor Contact Rating: 18 Amp @ 480Vac, 35 Amp @ 208/240/277 Vac, 60 Amp @ 120Vac, Resistive Contact Rating: 10 Amp @ 480Vac, 20.8 Amp @ 120/208/240/277Vac, Pilot Duty Ratings: Minimum 3 VA @ 24/120Vac & 480Vac, Maximum: 25 VA @ 24Vac, 125 VA @ 120/240Vac and 480Vac, Resistive: 3 Amp @ 277Vac, Powerpile: ( Normally Open Contacts Only ) 0.25 Amp @ 0.25-12Vdc, 1/4" Quick Connect Terminals, -20-150 Degree Temperature Rating

Existing reviews

Replacement Observation

Wasnt completely sure this would match at first since the older unit needed replacement part. Thankfully had to double check model compatibility first and everything is working again.

From: Guest | Date: 10/31/2025 9:36 AM

Was this review helpful? Yes No (0/0)

Installation Experience

Used this replacement after the original component had worn out over time. Needed basic hand tools only. Unit completed a full cycle without issues. Part quality feels reasonable compared to original one.

From: Guest | Date: 12/31/2025 8:36 AM

Was this review helpful? Yes No (0/0)

Only registered users can write reviews
