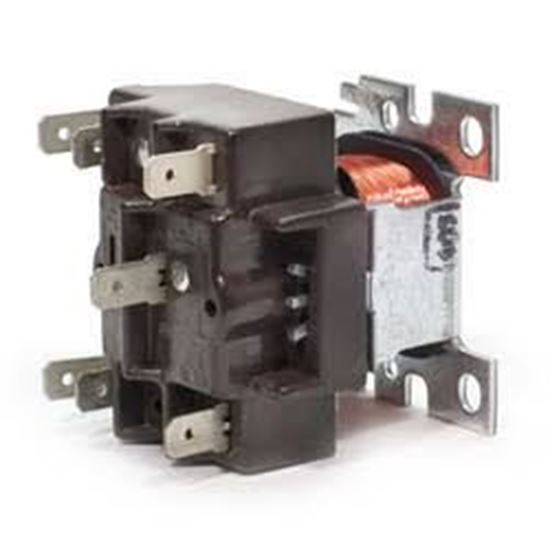

General Purpose Switching Relay, 120Vac Coil Rating, DPDT- Pilot Duty, Full Load Contact Ratings: 3 Amp @ 480Vac, 6 Amp @ 208/240/277Vac, 12 Amp @ 120Vac, Locker Rotor Contact Rating: 18 Amp @ 480Vac, 35 Amp @ 208/240/277 Vac, 60 Amp @ 120Vac, Resistive Contact Rating: 10 Amp @ 480Vac, 20.8 Amp @ 120/208/240/277Vac, Pilot Duty Ratings: Minimum 3 VA @ 24/120Vac & 480Vac, Maximum: 25 VA @ 24Vac, 125 VA @ 120/240Vac and 480Vac, Resistive: 3 Amp @ 277Vac, Powerpile: ( Normally Open Contacts Only ) 0.25 Amp @ 0.25-12Vdc, 1/4" Quick Connect Terminals, -20-150 Degree Temperature Rating

Existing reviews

Installation Experience

Wasnt completely sure this would match at first since the older unit needed replacement part. Thankfully mounting holes lined up correctly during install and everything is working again.

From: Guest | Date: 12/26/2025 8:36 AM

Was this review helpful? Yes No (0/0)

Installation Experience

Picked this up because the original component had worn out over time. Installation wasnt too difficult overall. Cooling performance seems stable again. Repair turned out easier than expected honestly.

From: Guest | Date: 4/5/2026 9:36 AM

Was this review helpful? Yes No (0/0)
