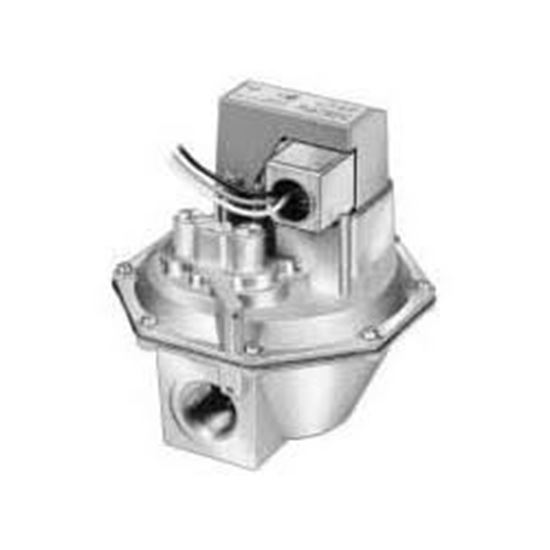

Two Stage Pressure Regulating Gas Valve, 1 1/2", 24Vac, 3"-4.5" Water Column High Fire Regulator Setpoints, 3.5" Water Column Factory Setting, 0.8"-2" Low Fire Regulator Setpoints, 0.8" Water Column Factory Setting, Natural Gas, 780-2300 Cfh Capacity, 6 Second Maximum Valve Opening Time, 2 Second Maximum Valve CLosing Time, Straight Through, Non Offset, 1/8" Pilot Tapping, 1/2 Psi Pressure Rating, Upright Horizontal Mounting, Slow Opening, Two 5/16" Unf Bleed Tappings, -40-150 Degree Operating Temperature Range, Aluminum Body, 1/4" Spade Terminals with Three 30" Leadwires
Existing reviews
Installation Experience
The older unit needed replacement part on our appliance ended up being caused by a failing part. Installation wasnt too difficult overall and the replacement solved it.
Guest | 8/8/2025 9:36 AM
Was this review helpful? (0/0)
Compatibility Feedback
Wasnt completely sure this would match at first since the older unit needed replacement part. Thankfully needed basic hand tools only and everything is working again.
Guest | 11/19/2025 8:36 AM
Was this review helpful? (0/0)
Compatibility Feedback
The older unit needed replacement part on our appliance ended up being caused by a failing part. Access was a little tight behind the panel and the replacement solved it.
Guest | 12/20/2025 8:36 AM
Was this review helpful? (0/0)
Compatibility Feedback
Installation wasnt too difficult overall while replacing the old component because the original component had worn out over time. Everything powered back on correctly afterward.
Guest | 3/7/2026 8:36 AM
Was this review helpful? (0/0)
