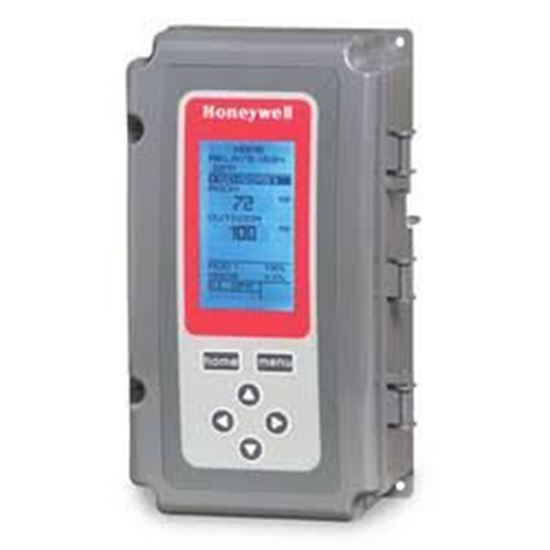

Stand Alone Remote Temperature Controller, 24Vac or 120/240Vac, No Relay Output, 2 Sensor Inputs, Modulating, Analog Output Type: 2-10Vdc, 0-10Vdc, 4-20mA, Electronic Series 90, Nema 4x Enclosure, 1/4"x2" Bulb Length, 1000' Maximum Distance to Sensor, Â±1 Degree @ 77 Degrees Accuracy, Sensor Element: 1097 Ohms PTC @ 77 Degrees,-40-248 Degree Setpoint Temperature Range, 1-150 Degree Throttling Range, 1-150 Degree Differential Temperature, 10 Amp Resistive Contact Rating @ 24Vac, 9.8 Amp Full Load Contact Rating @ 120Vac, 58.8 Amp Locked Rotor Contact Rating @ 120Vac, 125 VA Pilot Duty Contact Rating @ 120Vac, 4.9 Amp Full Load Contact Rating @ 240Vac, 29.4 Amp Locked Rotor Contact Rating @ 240Vac, 125 VA Pilot Duty Contact Rating @ 240Vac

Existing reviews

Repair Note

Needed basic hand tools only while replacing the old component because the original component had worn out over time. Unit completed a full cycle without issues.

From: Bob | Date: 12/3/2025 8:36 AM

Was this review helpful? Yes No (0/0)

Helpful Product Insight

Wasnt completely sure this would match at first since the older unit needed replacement part. Thankfully access was a little tight behind the panel and everything is working again.

From: Guest | Date: 12/18/2025 8:36 AM

Was this review helpful? Yes No (0/0)

Helpful Product Insight

Wasnt completely sure this would match at first since the original component had worn out over time. Thankfully mounting holes lined up correctly during install and everything is working again.

From: Guest | Date: 3/10/2026 9:36 AM

Was this review helpful? Yes No (0/0)

Only registered users can write reviews
